Timpte Equipment Trailers
For over 135 years, Timpte has utilized its in-depth knowledge and experience to provide industry leading transportation solutions to our valued customers. Leveraging our capabilities to design, manufacture, sell and service aluminum trailers for both on and off-highway applications, Timpte is proud to introduce the newest innovation in equipment trailers!
EZ Load Trailers
This unique suspension system enables the user to raise and lower the equipment trailer by using a remote transmitter or switch located at the toolbox storage system. The patent pending design provides a 4-degree approach angle, enabling easy loading of equipment with minimal ground clearance; such as scissor lifts, sports cars, motorcycles, and so much more.

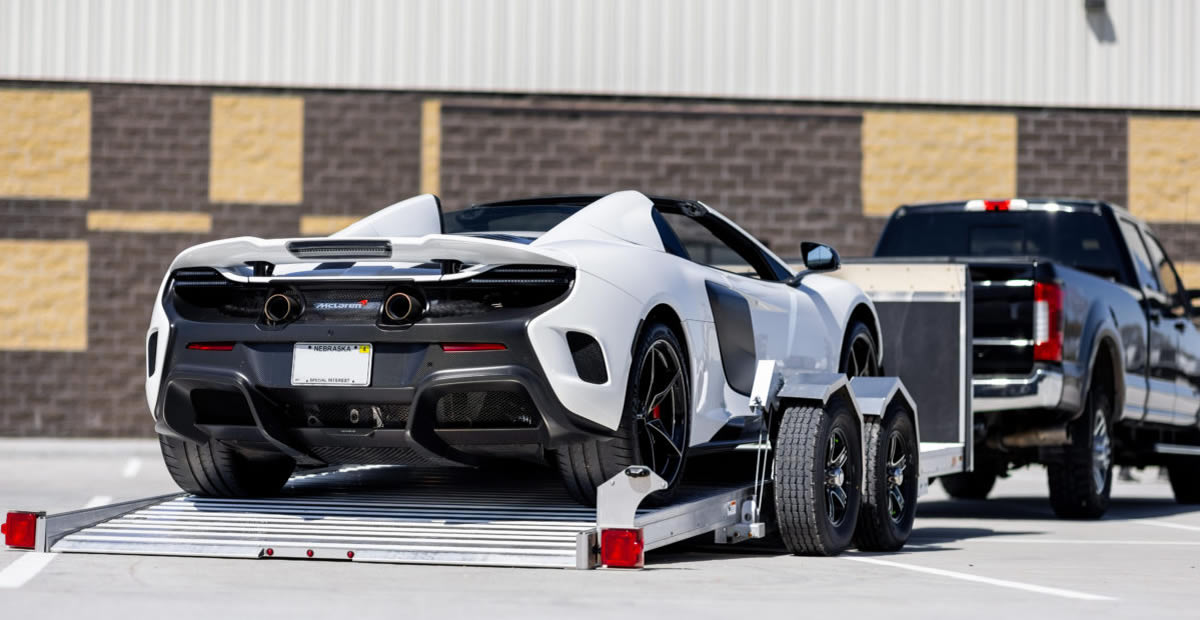

Spring Ride Trailers
The spring ride equipment trailers feature the EZ Load Powered Deck Lowering system to making hauling easy! Available in a variety of weights and sizes, be confident knowing this trailer is ready to get the job done.
3,000 GVW
Model | GVW | Bed Size | Empty Weight |
312 | 3,000 | 12′ x 81″ | 1,040 lbs |
214 | 3,000 | 14′ x 81″ | 1,180 lbs |

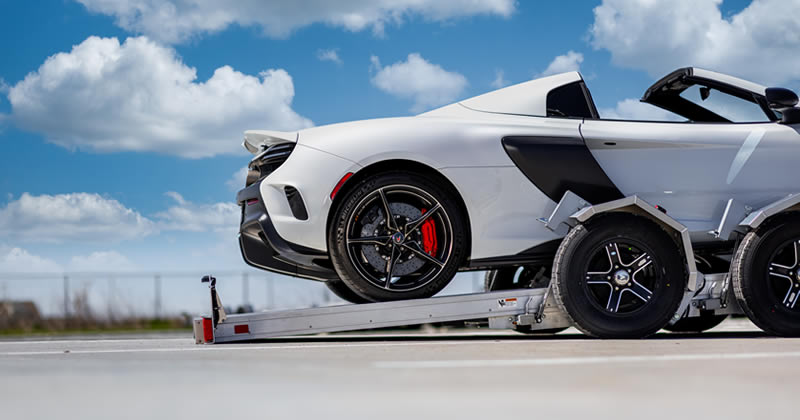

7,000 GVW
Model | GVW | Bed Size | Empty Weight |
718 | 7,000 | 18′ x 81″ | 1,640 lbs |
720 | 7,000 | 20′ x 81″ | 1,780 lbs |

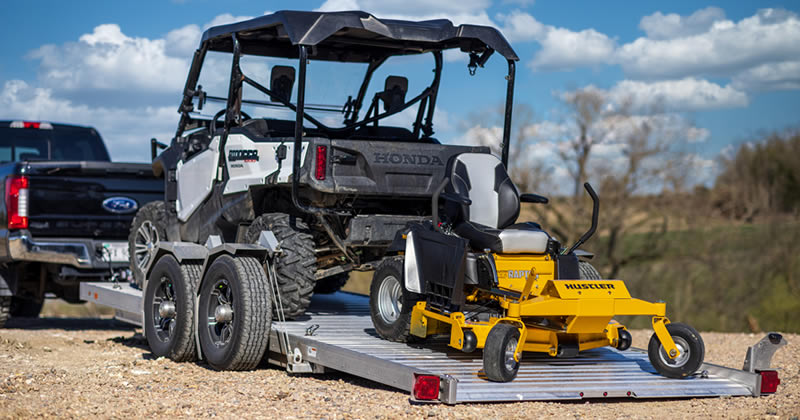

10,000 GVW
Model | GVW | Bed Size | Empty Weight |
1018 | 10,000 | 18′ x 78″ | 2,120 lbs |
1020 | 10,000 | 20′ x 78″ | 2,240 lbs |

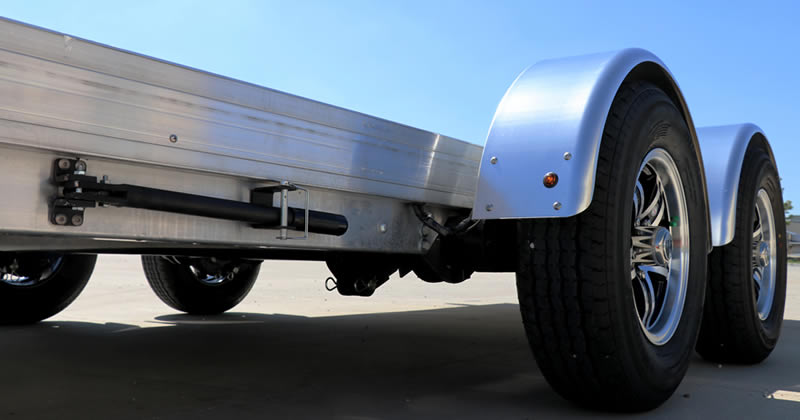

Torsion Trailers
The next generation torsion axle equipment trailer feature the EZ Load Powered Deck Lowering system and other great features. These all-aluminum trailers have the durability and strength to haul more!

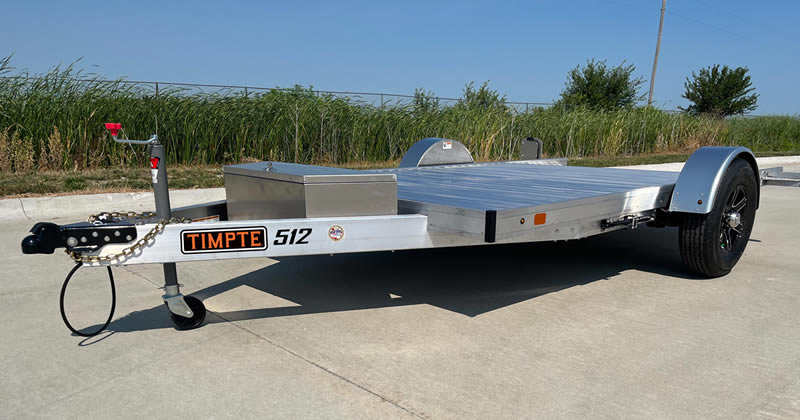

5,000 GVW
Model | GVW | Deck Size | Empty Weight |
512 | 5,000 | 12′ x 80″ | Est. 1,140 lbs |
514 | 5,000 | 14′ x 80″ | Est. 1,280 lbs |

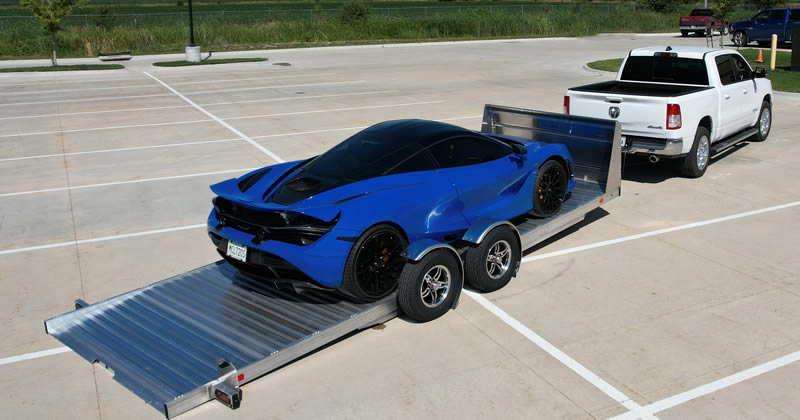

7,000 GVW
Model | GVW | Deck Size | Empty Weight |
718 | 7,000 | 18′ x 82″ | Est. 1,840 lbs |
720 | 7,000 | 20′ x 82″ | Est. 1,980 lbs |
10,000 GVW
Model | GVW | Deck Size | Empty Weight |
1018 | 10,000 | 18′ x 80″ | Est. 2,320 lbs |
1020 | 10,000 | 20′ x 80″ | Est. 2,440 lbs |

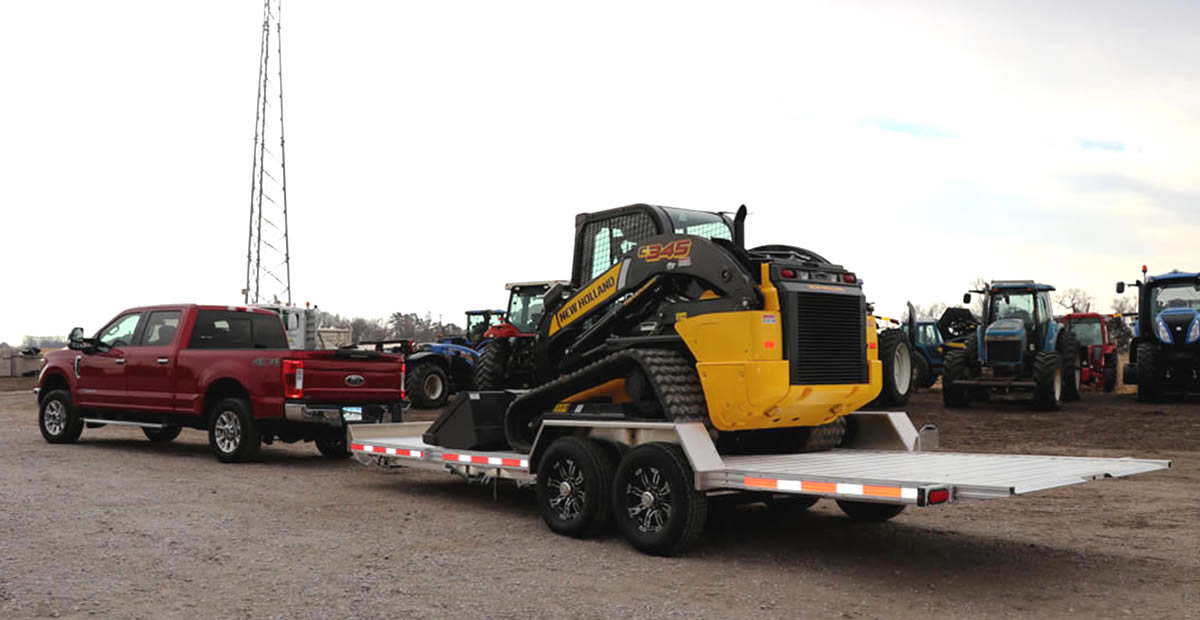

Split Tilt Deck Trailers
Haul heavier equipment on our all-aluminum 14,000 GVW split tilt deck trailer series. These trailers feature a hydraulic cylinder system to allow for more control to the operator and safety when loading and unloading equipment. The 12-degree approach angle offers an alternative to ramps and its 82″ usable deck width comfortably fits skid steers, mini excavators, and other pieces of large equipment
Model | 1420 | 1424 |
Overall Width | 102″ | 102″ |
Overall Length | 24′ 6″ | 28′ 6″ |
Stationary Deck Length | 4′ | 6′ |
Tilt Deck Length | 16′ | 18′ |
Tongue Length | 56″ | 56″ |
Deck Height | 22″ | 22″ |
Loading Angle | 12° | 11.5° |
Wheel Size | 16″ | 16″ |
Tire Size | ST235/85R16 | ST235/85R16 |
Axle | Fixed | Fixed |
Suspension | Rubber Torsion | Rubber Torsion |
Brakes | Electric Self-Adjusting | Electric Self-Adjusting |
Coupler | 2-5/16″ | 2-5/16″ |
Coupler Position | Adjustable | Adjustable |
Jack Style | Side Crank | Side Crank |
Jack Rating | 12,000 lbs | 12,000 lbs |
Stake Pockets | 18 | 18 |
Lighting | LED | LED |
